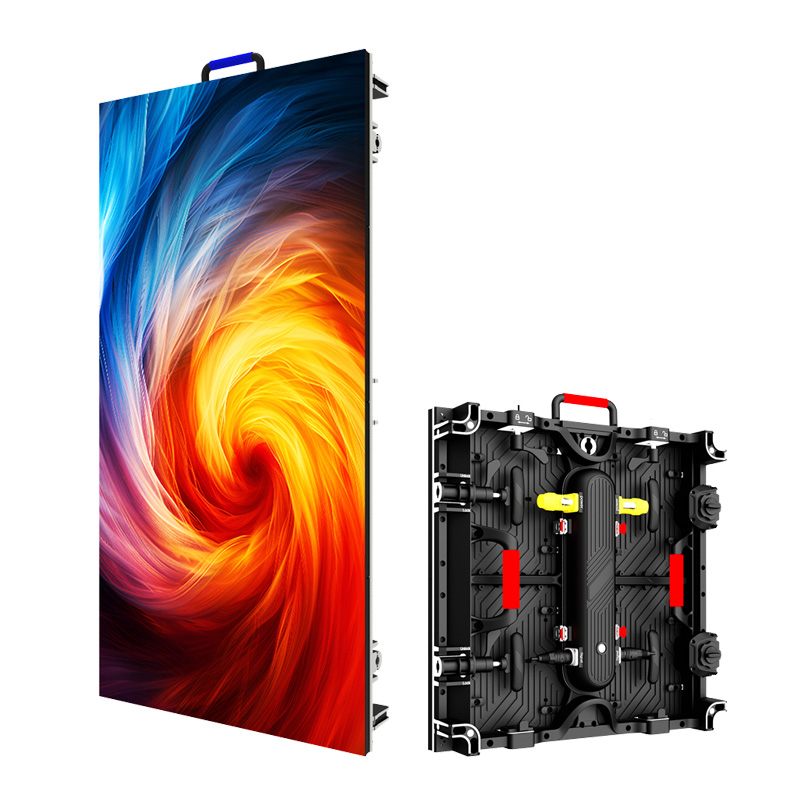

Zeyi-R3

Pixel Pitch

P2.604

P2.976

P3.91

P4.81

P5.95

LED Type

SMD415

SMD1415

SMD1921

SMD1921

SMD2727

Physical Density(Dot/m²)

147456

112896

65536

43264

28224

Module Resolution

969X96

84X84

64X64

52X52

42X42

Module Size(WXH)

250X250

250X250

250X250

250X250

250X250

Cabinet Size(mm)

500X500(1000)X84

500X500(1000)X84

500X500(1000)X84

500X500(1000)X84

500X500(1000)X84

Cabinet Resolution

192X192(192)X384

168X168(168)X336

128X128(128)X256

104X104(104)X208

84X84(84)X168

Module Quantity

2X2/2X4

2X2/2X4

2X2/2X4

2X2/2X4

2X2/2X4

Weight(kg)

8/14.5

8/14.5

8/14.5

8/14.5

8/14.5

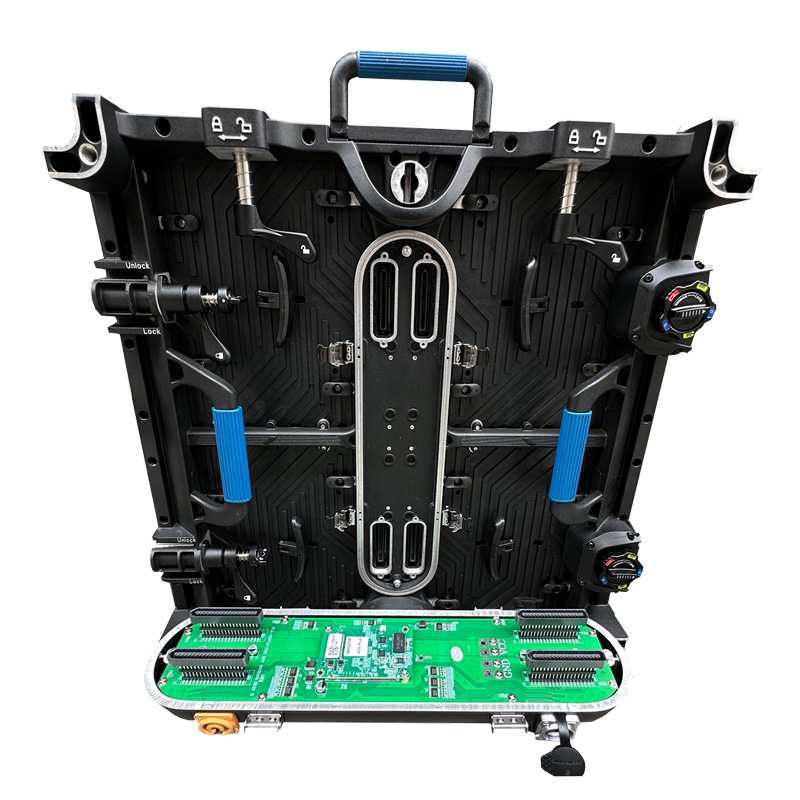

Maintenance

Front/rear Maintenance

Front/rear Maintenance

Front/rear Maintenance

Front/rear Maintenance

Front/rear Maintenance

Cabinet Material

Die-cast Aluminum

Die-cast Aluminum

Die-cast Aluminum

Die-cast Aluminum

Die-cast Aluminum

Brightness(Nits)

4500

4500

5500

5500

5500

Color Temperature(K)

5000-12000 Optional

5000-12000 Optional

5000-12000 Optional

5000-12000 Optional

5000-12000 Optional

Viewing Angle(H/V)

140°/160°

140°/160°

140°/160°

140°/160°

140°/160°

Viewing Distance

3-50m

3-100m

4-150m

5-150m

6-200m

Contrast Ratio

5000:1

10000:1

10000:1

10000:1

10000:1

Frame Frequency

50/60

50/60

50/60

50/60

50/60

Drive Mode

1/32 scan

1/28 scan

1/16 scan

1/13 scan

1/7 scan

Grey Scale

16bit

16bit

16bit

16bit

16bit

Refresh Rate(Hz)

3840

3840

3840

3840

3840

Max Power Consumption(W/m²)

800

800

800

800

800

Avg Power Consumption(W/m²)

200-300

200-300

200-300

200-300

200-300

IP Rate

IP65

IP65

IP65

IP65

IP65

Power Input

AC90-264V,47-63Hz

Working T/H (℃/RH)

-20~60℃/10%-85%

Storage T/H(℃/RH)

-20~60℃/10%-85%

Standard

CCC/CE/RoHS/FCC/CB/TUV/IEC
