Item | Specification | EH1.56-PRO | EH1.95-PRO |
Module Parameter | Pixel Pitch (mm) | 1.5625 | 1.953 |
Pixel Structure | COB 1RG1B | COB 1RG1B | |
Pixel Density(dot/m²) | 409,600 | 262,144 | |
Module Size(W*H)(mm) | 250*250 | 250*250 | |
Backshell Material | Die Casting Aluminum | Die Casting Aluminum | |
Module Resolution(W*H)(dot) | 160*160 | 128*128 | |
Maximum Current(A) | 3.5/4.5 | 3.5/4.5 | |
Supply Voltage(V) | 3.2/4.2 | 3.2/4.2 | |
Scanning Method | 1/20 | 1/16 | |
Refresh Frequency(Hz) | 7680 | 7680 | |
Illumination(cd/m²) | 3000 | 3000 | |
Driver IC | Constant Current Drive | Constant Current Drive | |
Contrast Ratio | ≥10000:1 | ≥10000:1 | |

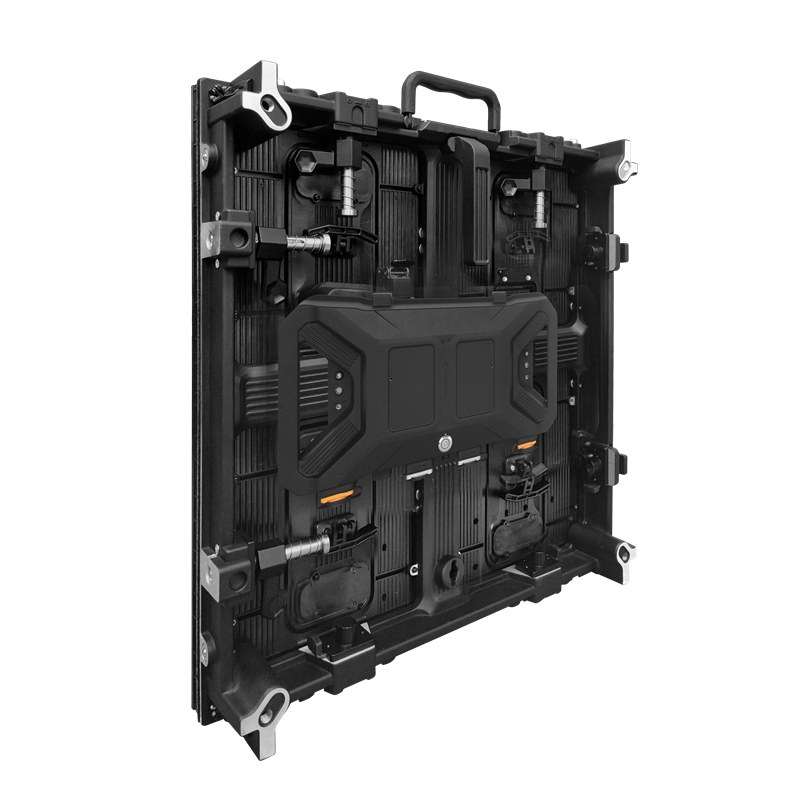

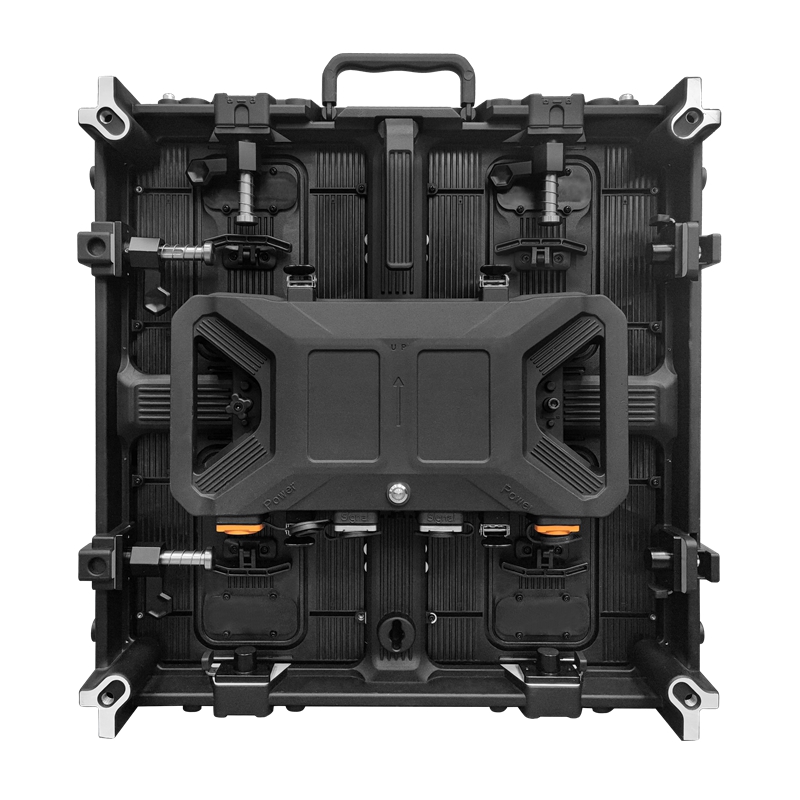

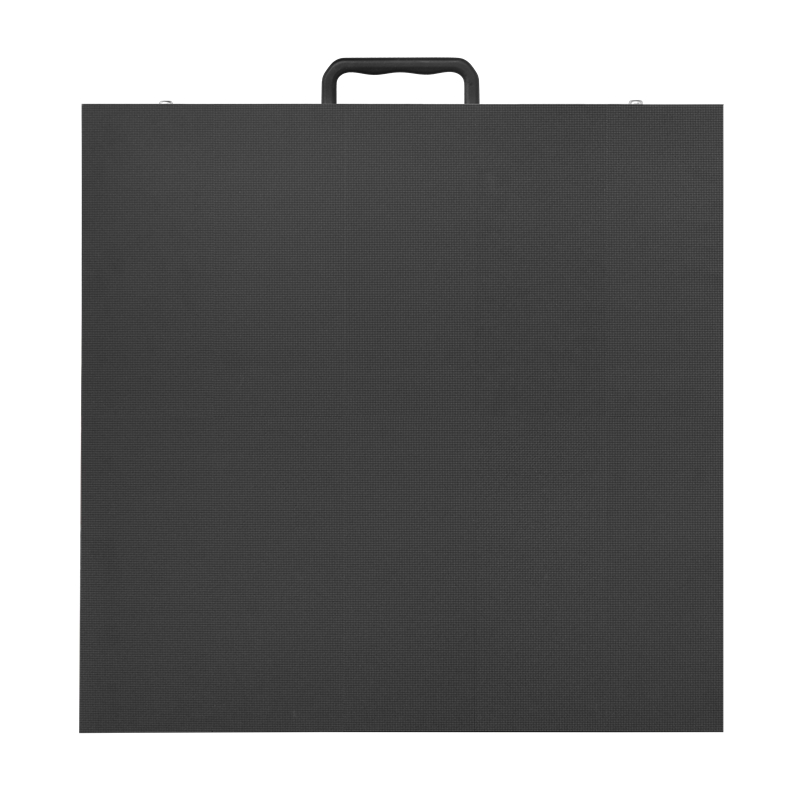

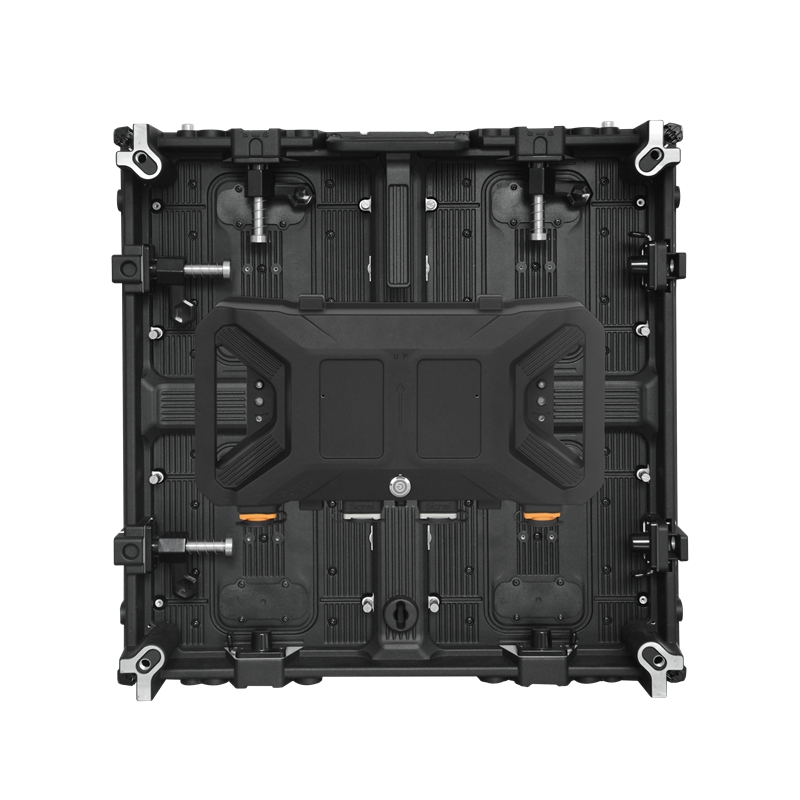

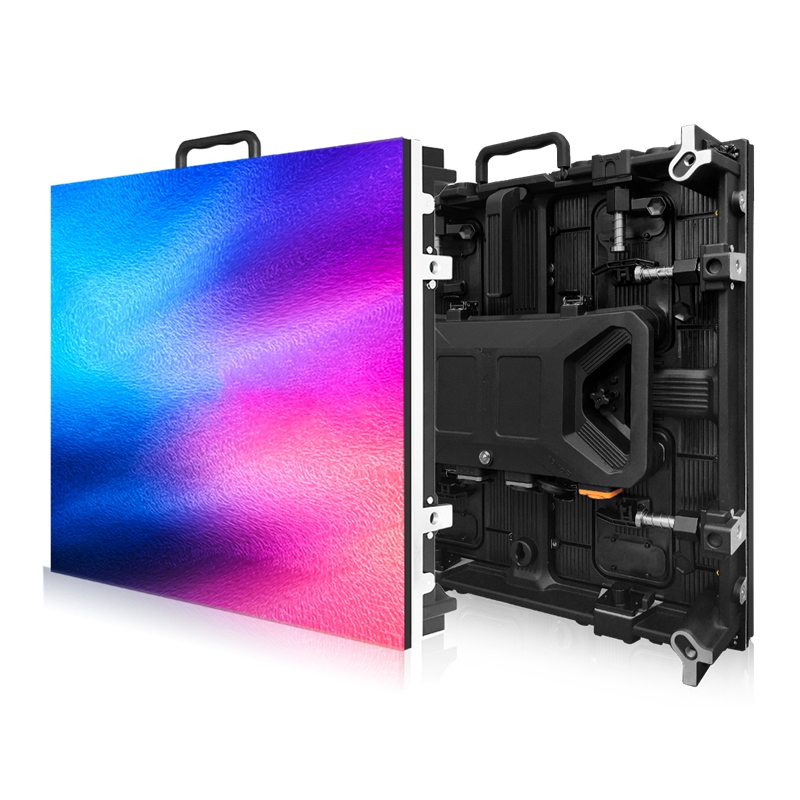

Cabinet Parameter | Cabinet Size(W*H*D)(mm) | 500*500*90 | |
Cabinet Material | Die Casting Aluminum | ||
Cabinet Weight(kg) | 9.5 | ||
Enclosure Connection Method | Quick Lock | ||
Installation/Maintenance Methods | Front or Back Installation/Front or Back Maintenance | ||
Color Temperature | 3000-12000KAdjustable,≥98% | ||
Chromatic Uniformity | ±0.003Cx,Cy | ||
Horizontal/Vertical View | ≤140° | ||
Single-point Color Correction | Yes | ||
Single Point Brightness Correction | Yes | ||
Standard Receiver Card | A8S-N | ||
Frame Rate(Hz) | 50/60 | ||
Protection Level | IP65 | ||
Signal Interface Mode | RJ45 | ||
Power Interface Method | Connectors | ||
Input Voltage Range AC(V) | 100-240 | ||
Peak Power Consumption(W/m²) | ≤680 | ||
Average Power Consumption(W//m²) | ≤260 | ||
Working Temperature and Humidity | -20～+50℃,10%～95%RH | ||
Storage Temperature and Humidity | -40～+70℃,10%～95%RH | ||
Service Life(H) | ≥100000 | ||
Mean Time Between Failure(H) | ≥10000 | ||
