Zeyi-Ti

Pixel Pitch

P2.976

P3.91

P4.81

P6.25

P7.81

P10.42

SMD Type

SMD1415

SMD1921

SMD1921

SMD2727

SMD2727

SMD2727

Physical Density(dots/m²)

112896

45539

43749

25600

16384

9716

Module Resolution

164884

128664

104552

82840

64324

48244

Module Size (mm)

500X250

500X250

500X250

500X250

500X250

500X250

Panel Dimension(W xH/mm)

1000X1000x83 (Customizable for1500 width and 500/750 height)

Panel Resolution

336X336

256X256

208X208

160X160

128X128

96X96

Module quantity(WxH)

2X4

2X4

2X4

2X4

2X4

2X4

Module Weight(kg)

22.5

22.5

22.5

22.5

22.5

22.5

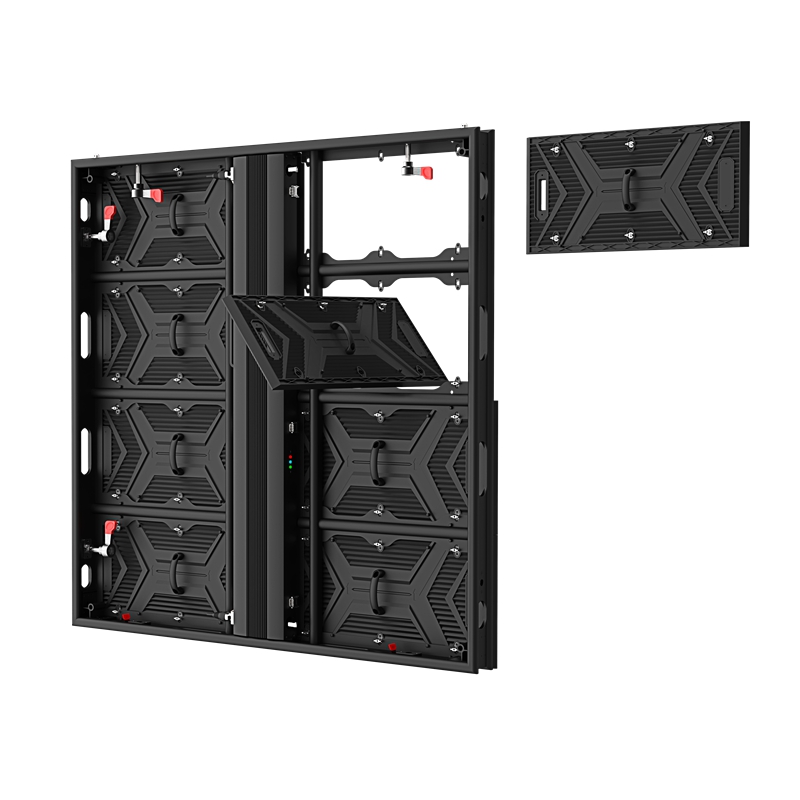

Maintenance Mode

Front & Rear

Front & Rear

Front & Rear

Front & Rear

Front & Rear

Front & Rear

Cabinet material

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

Brightness(Nits)

4500

5500-10000(Optional)

5500-10000(Optional)

5500-10000(Optional)

5500-10000(Optional)

5500-10000(Optional)

Color temperature(K)

5000-12000 Optional

5000-12000 Optional

5000-12000 Optional

5000-12000 Optional

5000-12000 Optional

5000-12000 Optional

Viewing Angle(H/V)

140°/160°

140°/160°

140°/160°

140°/160°

140°/160°

140°/160°

Best viewing distance

3-100m

4-100m

5-100m

6-100m

8-100m

10-200m

Contrast Ratio

10000:1

10000:1

10000:1

10000:1

10000:1

10000:1

Frame changing Frequency(Hz)

50/60

50/60

50/60

50/60

50/60

50/60

Driving Mode

1/21 Scan

1/16 Scan

1/13 Scan

1/8 Scan

1/4 Scan

1/2 Scan

Gray Level

16bit

16bit

16bit

16bit

16bit

16bit

Refresh Rate (Hz)

3840

3840

3840

3840

3840

3840

Max power consumption(W/m²)

650

650

650

650

650

650

Avg power consumption(W/m²)

100-200

100-200

100-200

100-200

100-200

100-200

Grade

IP65

IP65

IP65

IP65

IP65

IP65

Power supply requirements

AC90-264V,47-63Hz

Working Temp/Humidity(℃/RH)

-20~60℃/10%-85%

Storage Temp/Humidity(℃/RH)

-20~60℃/10%-85%

Cert.

CCC/CE/RoHS/FCC/CB/TUV/IEC
