Specification | EP-1.95 | EP2.6 | EP3.91 | |
Module Parameter | Pixel Pitch(mm) | 1.95 | 2.6 | 3.91 |
Pixel Structure | SMD 1R1G1B | SMD 1R1G1B | SMD 1R1G1B | |
Pixel Density(dot//m²) | 262,144 | 147,456 | 65,536 | |
Module Size(WxH)(mm) | 250*250 | 250*250 | 250*250 | |
Backshell Material | Plastic | Plastic | Plastic | |
Module Resolution(W*H)(dot) | 128*128 | 96*96 | 64*64 | |
Maximum Current(A) | 8.5 | 8.5 | 9 | |
Supply Voltage(V) | 5 | 5 | 5 | |
Scanning Method | 1/32 | 1/24 | 1/16 | |
Refresh Frequency(Hz) | ≥7680 | ≥7680 | ≥7680 | |
Illumination(cd//m²) | 700 | 600 | 500 | |
Driver IC | Constant Current Drive | Constant Current Drive | Constant Current Drive | |
Contrast Ratio | ≥5000:1 | ≥5000:1 | ≥8000:1 | |

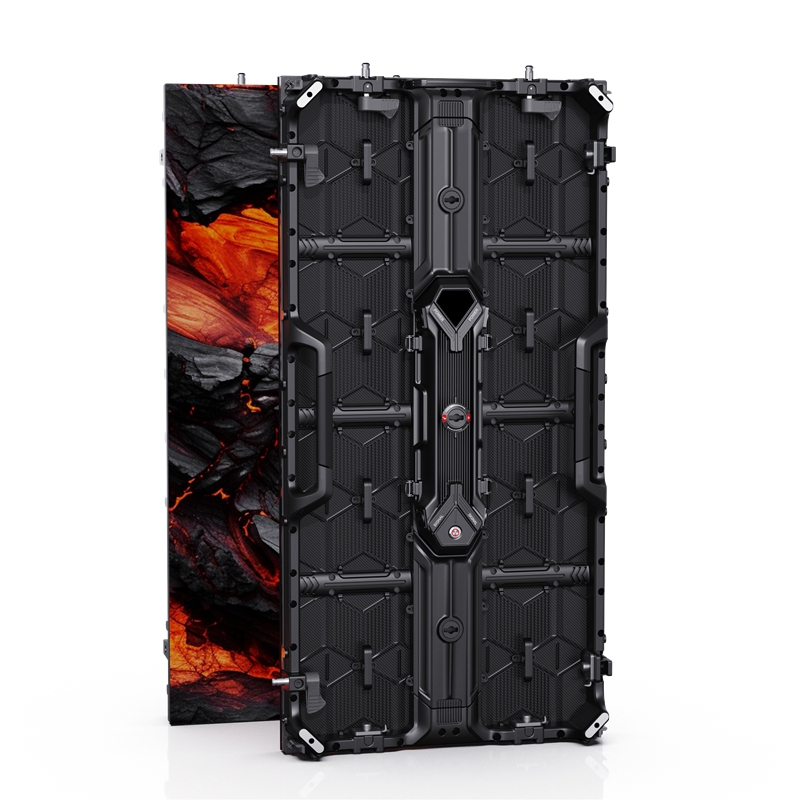

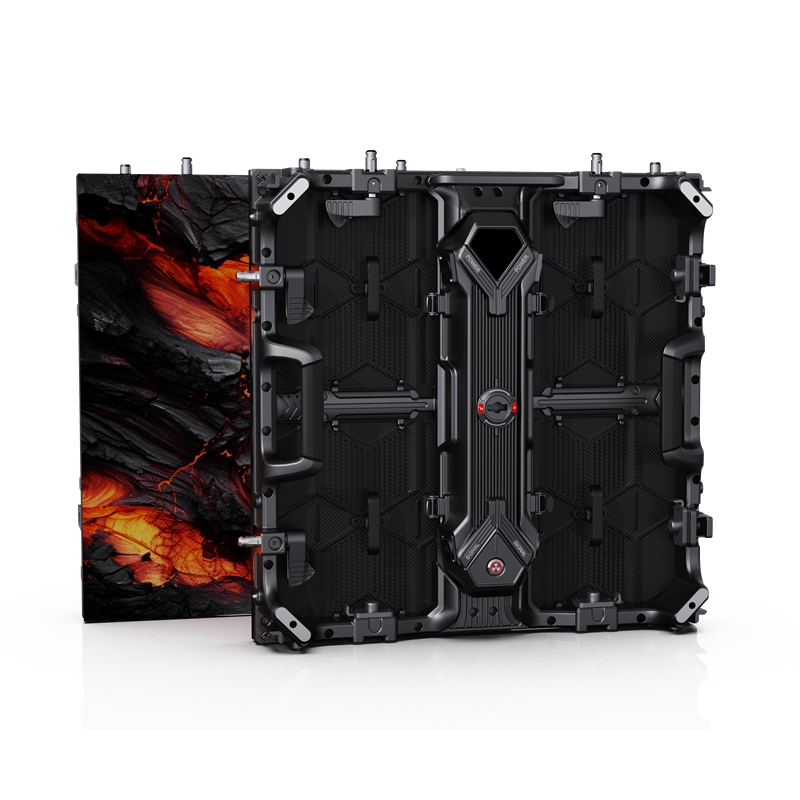

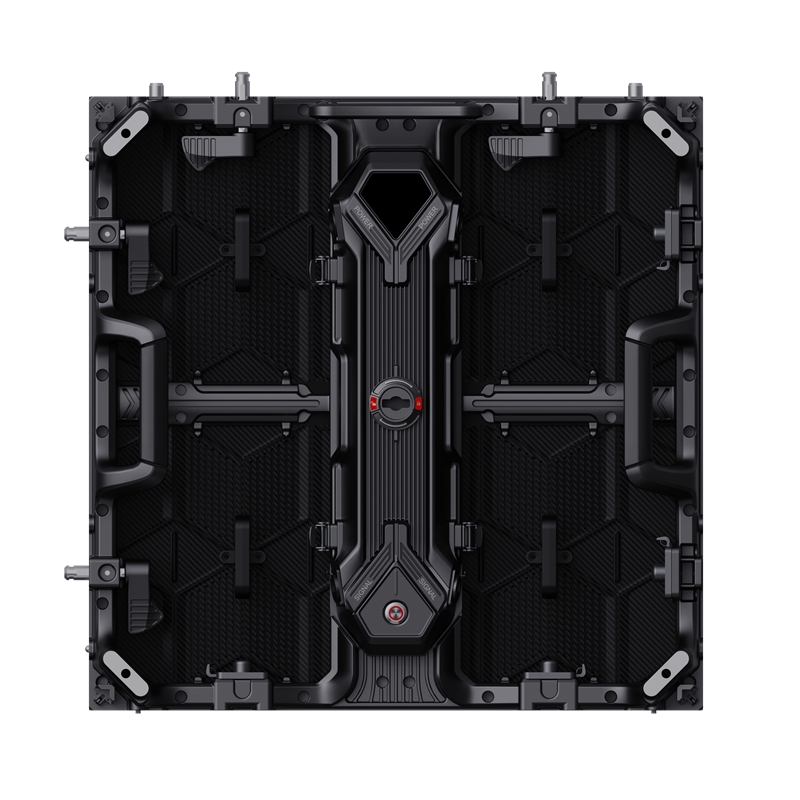

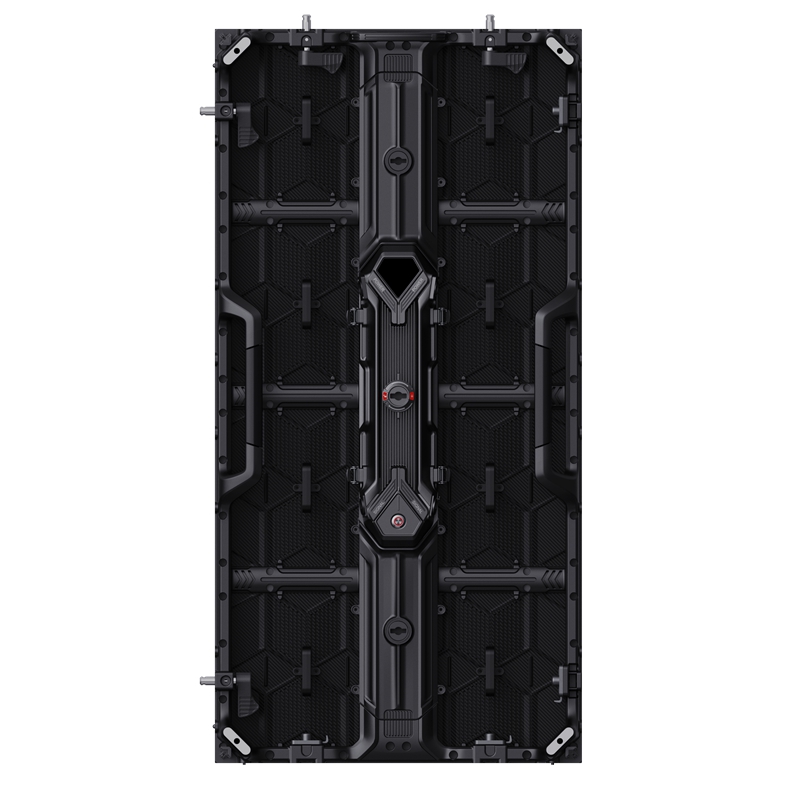

Cabinet Parameter | Cabinet Size(W*H*D) | 500*500*86 | 500*500*86/500*1000*86 | 500*500*86/500*1000*86 |
Cabinet Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | |
Cabinet Weight(kg) | 7.57 | 7.57/12.75 | 7.57/12.75 | |
Enclosure Connection Method | Quick Lock | Quick Lock | Quick Lock | |
Installation/Maintenance | Front or back Installation/Maintenance | Front or back Installation/Maintenance | nt or back Installation/Maintenance | |
Color Temperature | 3200-12000K Adjustable,≥98% | 3200-12000K Adjustable;≥98% | 000-12000K Adjustable;≥98% | |
Chromatic Uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy | |
Horizontal/Vertical View | ≥140/≥120° | ≥140≥120° | ≥140°≥120° | |
Single-point Color Correction | Optional | Optional | Optional | |
Single Point Brightness | Optional | Optional | Optional | |
Standard Receiver Card | A5S-PLUS/K5+ | A5S-PLUS | A5S-PLUS | |
Frame Rate(Hz) | 50/60 | 50/60 | 50/60 | |
Protection Level | IP45 | IP45 | IP65 | |
Signal Interface Mode | Custom Interface | Custom Interface | Custom Interface | |
Power Interface Method | Connector | Connector | Connector | |
Input Voltage Range AC(V) | 100-240 | 100-240 | 100-240 | |
Peak Power Consumption(W/m²) | ≤650 | ≤650 | ≤780 | |
Average Power | ≤200 | ≤200 | ≤360 | |
Working Temperature and | -20℃~+50℃,10%～95%RH | -20℃~+50℃,10%～95%RH | -20℃~+50℃,10%～95%RH | |
Storage Temperature and | -40～+70℃,10%～95%RH | -40～+70℃,10%～95%RH | -40～+70℃,10%～95%RH | |
Service Life(H) | ≥100000 | ≥100000 | ≥100000 | |
Mean Time Between Failure(H) | ≥10000 | ≥10000 | >10000 |
